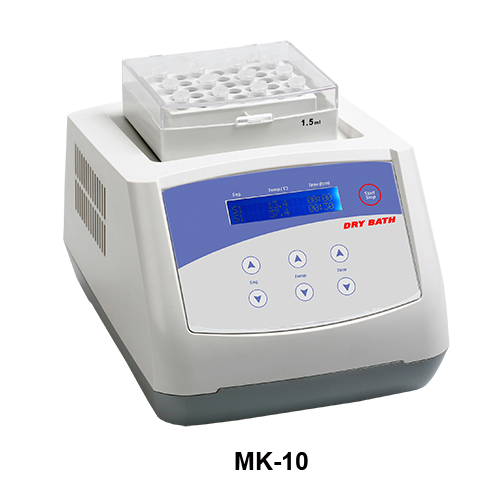

Dry Bath Incubator – MK-10 / MK-20

The MK-10/MK-20 Dry Bath Incubator is a microprocessor-controlled product using advanced thermoelectric technique. With this technique, more stable and accurated temperature control is achieved. Replacement is convenient with optional metal block of various specifications configured for different types of test tubes.


1. LCD display. It is easy to set up and use
2. Simultaneous display of set and actual time, temperature
3. Temperature deflection adjusting meet with different demands
4. Easy to replace the metal blocks and is very simple to clean and sterilize
5. Microprocessor controlled incubation time and temperature
6. Beep-signal/Stop after program completed
7. Peltier design of MK-20 provides efficient thermal control

Technical Data

Model  MK-10  MK-20
 Temperature Control Range  RT.+5°C~100°C  -10°C~100°C
 Timing Range  1min~99h59min  1min~99h59min
 Temp. Control Accuracy  ±0.5°C  ±0.5°C
 Display Accuracy  ±0.1°C  ±0.1°C
 Heating Time(25 to 100°C)  ≤12min  ≤15min
 Cooling Time(20 to -10°C)  —-  ≤15min (*)
 Heating Part  Heater  Peltier
 Cooling Part  —-  Peltier
 Certificate  CE  CE
 Dimension(mm)  300 x 220x 180  300 x 220x 180
 Net Weight  2.5kg  5kg


Code Type Description  The highest Temperature  The lowest Temperature
AS-01051-01 A 96×0.2ml 100°C -10°C
AS-01051-02 B 54×0.5ml 100°C -10°C
AS-01051-03 C 35×1.5ml 100°C -10°C
AS-01051-04 D 35×2.0ml 100°C -10°C
AS-01051-05 E 15×0.5ml+20×1.5ml 100°C -10°C
AS-01051-06 F 24xDiameter≤Φ12mm tubes 100°C 0°C
AS-01051-07 G 12x15ml Falcon 100°C 0°C
AS-01051-08 H 6x50ml Falcon 100°C 0°C
AS-01051-09 I 103x67x30mm Bath Block 100°C 0°C
AS-01051-10 J 96×0.2ml Microplate 100°C 0°C
AS-01051-11 K 24x5ml tubes 100°C 0°C
AS-01051-12 L 96-Deep well plate 80°C 8°C
AS-01051-13 M 15x5ml Eppendorf tubes 100°C 0°C
