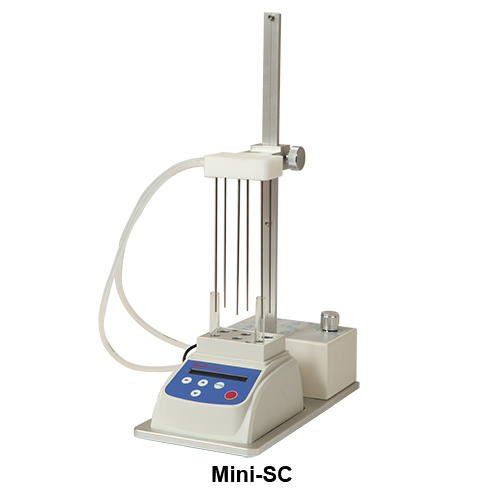

1. Mini-SC and Mini-SCN are controlled by a micro processor, a gas source and a heating device. They can transfer the air to the sample rapidly, continually and controllable, make sample concentration very quickly.
2. The machine is DC input, compact, easy to carry and detach, suitable for moving detection station, moving detection vehicle.
3. A Mini-Air pump open and flow adjustment Open ,close the air pump with flow adjustment knob. Switch the knob anticlockwise to close the pump, switch clockwise to open the pump and can adjust the flow.
4. To easy install and use the instrument
|Max. Lift Height||180mm||180mm|
|Air Pump Flow||Max. 5L/min||Max. 5L/min|
|Air Pump Pressure||Max. 0.015Mpa||Max. 0.015Mpa|
|Average Power consumption||10W||10W|
|Temperature Control Range||RT+5°C~80°C||RT+5°C~80°C|
|Time Setting Range||1min~999min or 1sec~999sec||1min~999min or 1sec~999sec|
|Heating Time (from 20°C to 80°C)||<=12min||<=12min|
|Dimensions (W x D x H)||134mm x 266mm x 415mm||134mm x 266mm x 415mm|
