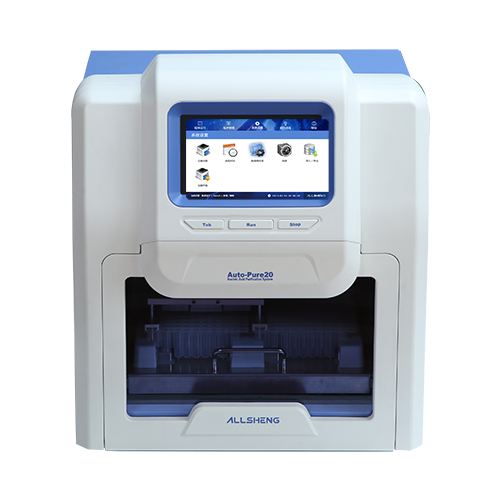

Nucleic Acid Purification System – Auto-Pure20A

Automate low-throughput sample preparation within your laboratory workflow using Magnetic Particle Processors: Auto-Pure20 Nucleic Acid Purification System. It for processing volumes up to 3ml, the system enable all purification steps in a single-strip of nine tubes, and support 20 processed samples per run. With the ability to go down to 50ul to release target molecules, samples such as DNA or RNA can isolated and concentrated from larger starting volumes at the same time.


Auto-Pure32A/Auto-Pure20A/Auto-Pure20B is a bench top device for DNA and RNA purification by using magnetic separation technology from different starting materials, such as blood, cultured cells or bacteria, tissues, cell-free body fluids and plant samples. The device is capable of using magnetic rods to transfer particles through the various purification phases of binding, mixing, washing and elution, offering a solution with minimized hands-on time. The DNA and RNA purification is of high quality and high molecular weight.

Code Description
AS-17040-00 Auto-Pure20A Nucleic Acid Purification System; AC120V/240V;50/60Hz

Process samples up to 1ml, 3ml or 5ml
With the Auto-Pure series can process up to 32 samples per run when the working volume is up to 1ml. With the ability to change the instrument configuration, the customers can elevate the sample processing volume up to 3ml or 5ml to obtain higher yields of the purified product, and the throughput up to 20 samples.

Type Auto-Pure20A
Throughput  1~20
Process volume  50~3000ul
Collection efficiency  >95%
Magnetic rod number 20
Purification accuracy  100 copy sample positive rate>95%
Stability  CV<5%
Plate types  3ml tube strip
Heating for lysis tube  Ambient temperature~120°C
Heating for elution tube  Ambient temperature~120°C
Operation  7 inch color touch screen
Extraction steps  Lysis, Sample binding, Washing and elution
Storage Capacity  more than 100 programs
Protocol Management  Create, edit, delete, protocol mode
Pollution Control  UV light
Lighting  Yes
Extension interface  4 standard USB port, built-in SD card
Exhaust  Fan
Power Supply  450W
Dimensions  400×520×450mm
Weight  28Kg
 Code  Description
 AS-17040-00  Auto-Pure20A Nucleic Acid Purification System, AC120V/240V, 50/60Hz
 AS-17041-01  Tube strips for Auto-Pure20A (Special design) – 3ml
 AS-17041-02  Magnetic rod’s tip for Auto-Pure20A / Auto-Pure20B
