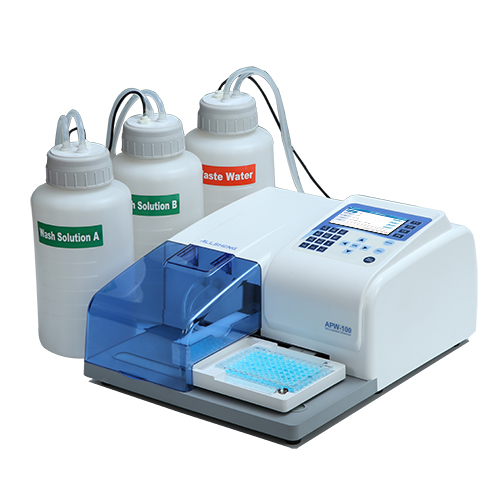

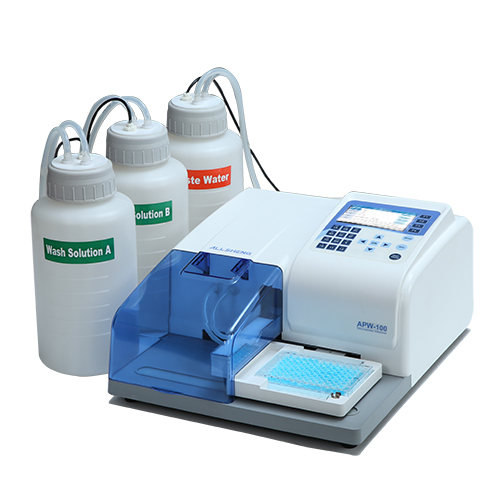

Microplate Reader and Washer – APW-100

The APW-100 Microplate Washer is easy, convenient and versatile to use for washing microplate in ELISA assays.
1. Low residual liquid, each well≤0.5ul
2. Compatible for microplates: flat, U, V, C bottom
3. 4.3 inch color LCD display, easy to operate
4. Wash parameters can be set to make sure the best washing effect

Description

The APW-100 Microplate Washer is easy, convenient and versatile to use for washing microplate in ELISA assays. It efficiently remove liquid from wells. Low residual volumes eliminate high background signal to ensure reliable assay results. Washing performance can be optimized by adjusting wash parameters, such as wash cycles, soaking time, shaking speed, dispense and aspiration height and speed.

Safety and reliable feature:
The APW-100 is equipped with liquid position sensor to avoid the washing liquid used up or waste liquid from overflow, minimize the risk and avoid the liquid being sucked into the pump to break the equipment. Besides it has shaking function which can improve the washing efficiency.

The APW-100 Microplate Washer has 4.3 inch LCD display with friendly interface, U-disk can be used to transfer the data between the PC and the washer or between two washers, it can also be used to upgrade the software. The washing head can be replaced easily for different kinds of microplates.

Easy Operation:
The APW-100 has 4.3 inch LCD display with friendly interface, U-disk can be used to transfer the data between the PC and the washer or between two washers, it can also be used to upgrade the software. The washing head can be replaced easily for different kinds of microplates.

Features

1. Low residual liquid, each well ≤0.5μl
2. Compatible for microplates: flat, U, V, C bottom
3. 4.3 inch color LCD display, easy to operate
4. Washing head position can accurate to 0.1mm
5. Wash parameters can be set to make sure the best washing effect
6. Support external U-disk, for program exporting
7. 100 programs can be saved
8. Uniform volume mark make it easy to measure the liquid
9. Automatic alarm for full liquid
10. Strainer in the pipeline and automatic washing functions avoid the liquid blocking the pipeline

Technical Data

Model  APW-100
 Residual liquid  ≤0.5μl
 Washing heads  1×8 or 1×12 heads
 Plate types  Flat, U, V, C bottom
 Washing volume  50~2000μl, increase by 50μl
 Washing method  Central
 two points
 multi points
 Washing times  99 times
 Washing channels  3
 bottle  3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle
 Dispense accuracy  CV≤2.0% at 300μl
 (CV≤1.5% for 96 wells)
 Soaking and Shaking time  19’59”
 Number of wash protocols  up to 100
 Data connection  USB
 Dimensions(W x D x H)  345 x 460 x 200 mm
 Weight  11.5kg
 Power supply  AC100/240V, 50/60Hz

Accessories

Code  Description
 AS-16010-00  APW-100 Microplate Washer, 120V/240V
 AS-16011-01  8 needles washing head
 AS-16011-02  12 needles washing head
 AS-16011-03  Washing liquid bottle
 AS-16011-04  Waste liquid bottle
