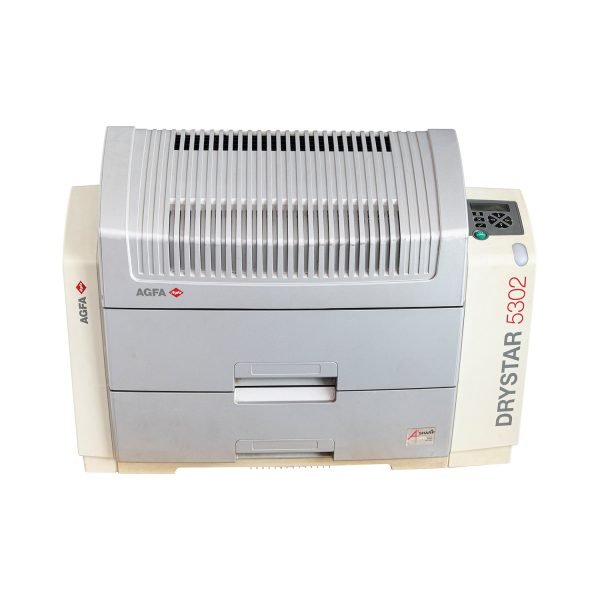

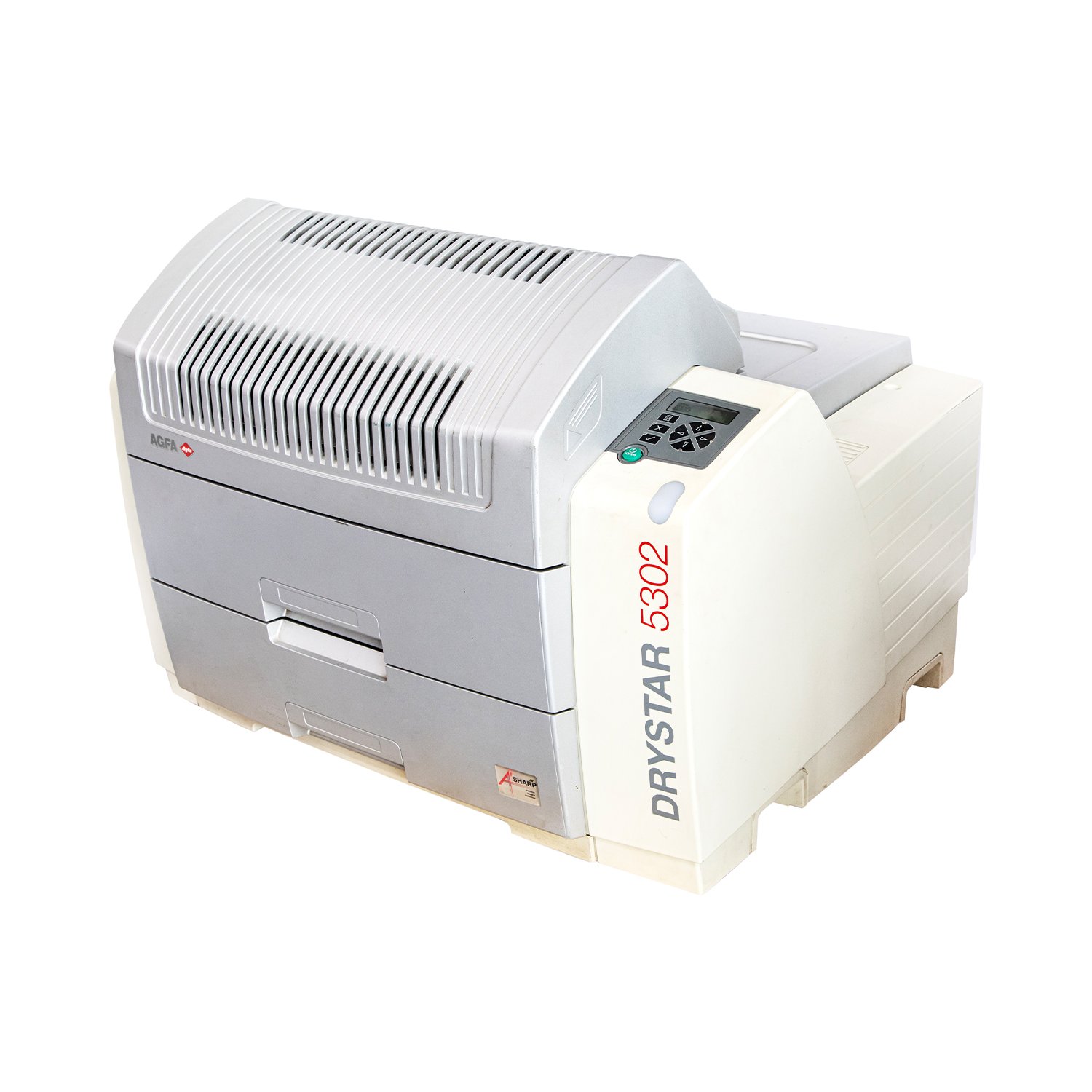

AGFA DRYSTAR 5302 (Thermal Film Printer)
AGFA DRYSTAR 5302 (Thermal Film Printer)
AGFA DRYSTAR 5302 (Thermal Film Printer) - Image 3

AGFA DRYSTAR 5302 (Thermal Film Printer)

AGFA DRYSTAR 5302 is a high-performance thermal film printer designed for radiology. It delivers high-quality images with direct digital imaging technology, boasting high reliability and low maintenance. Supporting 5 film sizes with 2 available online simultaneously, it features fast first-sheet output and can handle up to 75 14×17-inch films per hour, flexibly adapting to various radiology scenarios. Its compact size allows easy installation in small spaces, and as a DICOM-native device, it integrates seamlessly into networks to boost workflow efficiency.

Categories: ,

Description

About AGFA DRYSTAR 5302

AGFA DRYSTAR 5302 is a high-performance thermal film printer. With advanced direct digital imaging technology and a compact design, it delivers reliable, efficient imaging solutions for radiology and other scenarios, balancing high-quality image output with user-friendly operation.

High Reliability, Minimal Maintenance
It adopts Direct Digital Imaging (DDI) technology, eliminating complex optical components. This design ensures stable and durable operation, significantly reducing daily maintenance needs and minimizing downtime.

Easy Connectivity, Seamless Workflow Integration
As a DICOM-native device, AGFA DRYSTAR 5302 easily connects to networks. It integrates into existing systems without complicated setups, enhancing workflow smoothness.

Dual Online Media Sizes, More Convenient Operation
Despite its compact size, it supports 5 media sizes and can load 2 sizes online simultaneously. This eliminates frequent media changes when handling different image sizes. With fast first-sheet output speed, it can process up to 75 sheets of 14×17-inch film per hour, suitable for most radiology applications.

Space-Saving, Application-Proximity Installation
The device has a small footprint, enabling installation close to application scenarios even in space-constrained environments. Its flexible placement, combined with low investment and operating costs, makes it suitable for various equipment needs.

One-Stop Imaging Solution
Through intelligent matching of Direct Digital Imaging technology, media, and the device, AGFA DRYSTAR 5302 serves as the core of AGFA’s integrated solutions. Paired with advanced Agfa dry film, it consistently delivers diagnostic-grade grayscale hardcopies. Since the dry film is heat-sensitive rather than light-sensitive, it allows convenient daylight loading.

Enhanced Imaging Quality
Building on the award-winning Direct Digital Imaging (DDI) technology, it integrates A#Sharp technology to boost imaging capabilities, ensuring sharper image quality across all applications.

Technical Specifications

Category Details
General Dimensions (W x D x H): 72.8 x 71.5 x 53.6 cm (H = 67.6 cm with output tray); 28.7 x 28.1 x 21.1” (H = 26.6” with output tray)
Weight (without film): 90 kg (198 lbs)
Power requirements Auto ranging 100 – 240 V: 50/60 Hz
Power consumption Printing: 250 Watt
Peak: 530 Watt
Standby: 70 Watt
Capacity of supply tray 100 sheets per supply tray
Heat dissipation Standby power: 70 watts
Average printing power: 250 watts
Peak power: 530 watts
Environmental requirements – Operation Temperature: +15 ~ +30° C (59 to 86° F)
Humidity: 20 ~ 75% Rh (non-condensing)
Environmental requirements – Storage and transportation Temperature: -25 ~ +55° C (-13 to 131° F), for transport: -40 ~ +70° C (-40 to 158° F)
Humidity: 10 ~ 95% Rh (non-condensing)
Performance Throughput:
• 14 x 17”: 75 sheets/hour (48 sec/sheet)
• 11 x 14”: 86 sheets/hour (42 sec/sheet)
• 8 x 10”: 130 sheets/hour (28 sec/sheet)
Access time first sheet: 77 sec. (14 x 17” – 14 bits)
Diagnostic area:
• 8 x 10”: 2376 x 3070 pixels
• 10 x 12”: 3070 x 3653 pixels
• 11 x 14”: 3348 x 4358 pixels
• 14 x 17”: 4358 x 5232 pixels
Printing resolution:
Geometrical: 320 dpi
Pixel depth architecture: 14 bit
Media Types:
• Agfa dry film: blue base
• Agfa dry film: clear base
Sizes:
• 8 x 10”, 10 x 12”, 11 x 14”, 14 x 14” and 14 x 17”
• 2 online sizes
Safety Standard IEC 60601-1
