Homogenizer – Bioprep-24R

Bioprep-24R is your solution for sample preparation and cell lysis. The reliable, fast and high-throughput homogenizer to extract DNA, RNA or proteins from animal, human and plant tissues, micro-organisms, spores, bones, etc. Grind and homogenize a large range of biological samples, compatible with any analysis DNA-RNA Electrophoresis, Liquid Chromatography, Western Blot etc.

Description

Fast, effective and reproducible homogenization of a wide range of samples, including tissues and cells hard to lyse. It also owns extraordinary power for the processing of even impact resistant samples such as bones or cartilage. The Bioprep-24 is an ideal solution for releasing DNA, RNA, Proteins, Enzymes, etc. from very tough samples while still retaining molecular integrity.
Using disposable sample tubes pre-filled with a variety of lysing beads, the Bioprep-24R vigorously and uniformly shakes the tubes providing an efficient, consistent, high-yield and quality homogenization usually in less than 35 seconds.

Typical Samples:
— Animal, Plant, Human cells;
— Micro-organisms;
— Drugs, polymers, lotions, etc.
— Soil and sediments;
— Swabs and feces
— Bone, brain, tumors
— Bacterial gram + or –
— Yeast, fungi, spores
— Seeds, roots
— Feces, swabs

Applications:
Any researcher who requires genomic DNA, RNA or recombinant protein as a starting material will benefit from the unit system.
— Northern blot analysis, qPCR and microarrays
— Optimization of recombinant protein expression
— Libray synthesis and Southern blots
— Pathogen screening of soil or water
— RT-PCR and differential display
— Environmental surveys
— Verification of food safety

How to use beads

1.4mm&2.8mm Ceramic Beads 3mm&6mm Metal Beads 1mm&3mm Glass Beads
Ideal for soft animal, plant or human tissues:
• brain
• liver
• skin
• leaves
• gonad
• muscle, etc.
Ideal for any hard tissue types:
• hair
• teeth
• bones
• seeds
• corn
• rice
• nail, etc
Ideal for microorganisms Optimal for:
• spores
• fungi
• yeast
• e-coli, etc.
We will offer the Lysing Kits which are available with Plastic or Stainless Steel pre-filled sample tubes in future

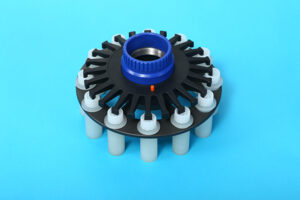

Roto Adapter
Rotor for 24×2.0ml

Rotor for 12×5.0ml

Features
1. “3D Rotating High Speed Motion” for quick disruption of those fibrous tissues and resistant cells

2. 50 programmable memory settings and user optional condition settings

3. A wide range of rotation speed settings from 4 to 7 m/s, increment 0.05m/s

4. Brushless motor realizing no brush particle generation

5. Easy to remove sample tube holder and fix sample tubes

6. Easy to monitor the disruption process through the clear lid

7. Simultaneously homogenize:
Bioprep-6 6*2ml tubes or 2*5ml tubes
Bioprep-24 24*2ml tubes or 12*5ml tubes
Bioprep-24R 24*2ml tubes or 12*5ml tubes

8. Disposable tubes ensure no threat of cross-contamination or sample degradation

9. The Bioprep-6 and Bioprep-24 vigorously and uniformly shakes the tubes providing an efficient, consistent, high yield and quality homogenization usually in 35s or less

Technical Data

Type Bioprep-24R(Cooling Function)
 Display  OLED
 Speed Range(m/s)  4.00m/s~7.00m/s, increment 0.05m/s
 Speed Range (rpm)  2430rpm — 4260rpm, increment 10rpm
 Cycle Duration  1s — 90s, increment 1s
 Pause time  1s — 90s, increment 1s
 Cycle  10
 Programmable  50
 Samples  24 x 2ml/1.5ml/0.5ml or 12 x 5ml grinding tube
 Acceleration Time  <4s
 Deceleration Time  <4s
 Noise  <70 db
 Power  150W
 Dimensions (W×D×H)  300×500×360 mm
 Weight (kg)  40.0 kg
 Power Supply  AC100~240V, 50/60Hz
 Temperature Range -10℃~40℃
 From RT.to 0℃ <30min
 Temperature uniformity ±2℃
 Cooling method Compressor refrigeration

Accessories

Code Description
AS-13030-00 Bioprep-24R Refrigerated Homogenizer
AS-13010-01 Rotor for 24×2.0ml
AS-13010-02 Rotor for 6×5.0ml
AS-13010-03 2.0ml tubes
AS-13010-04 5.0ml tubes
AS-13010-05 Φ1.4mm Ceramic beads
AS-13010-06 Φ2.8mm?Ceramic?beads
AS-13010-07 Φ3mm Metal beads
AS-13010-08 Φ6mm Metal beads
AS-13010-09 Φ0.2mm glass beads
AS-13010-10 Φ0.5mm glass beads
AS-13010-12 Φ3.0mm glass beads
AS-13010-13 Φ1.4mm metal beads
