Description

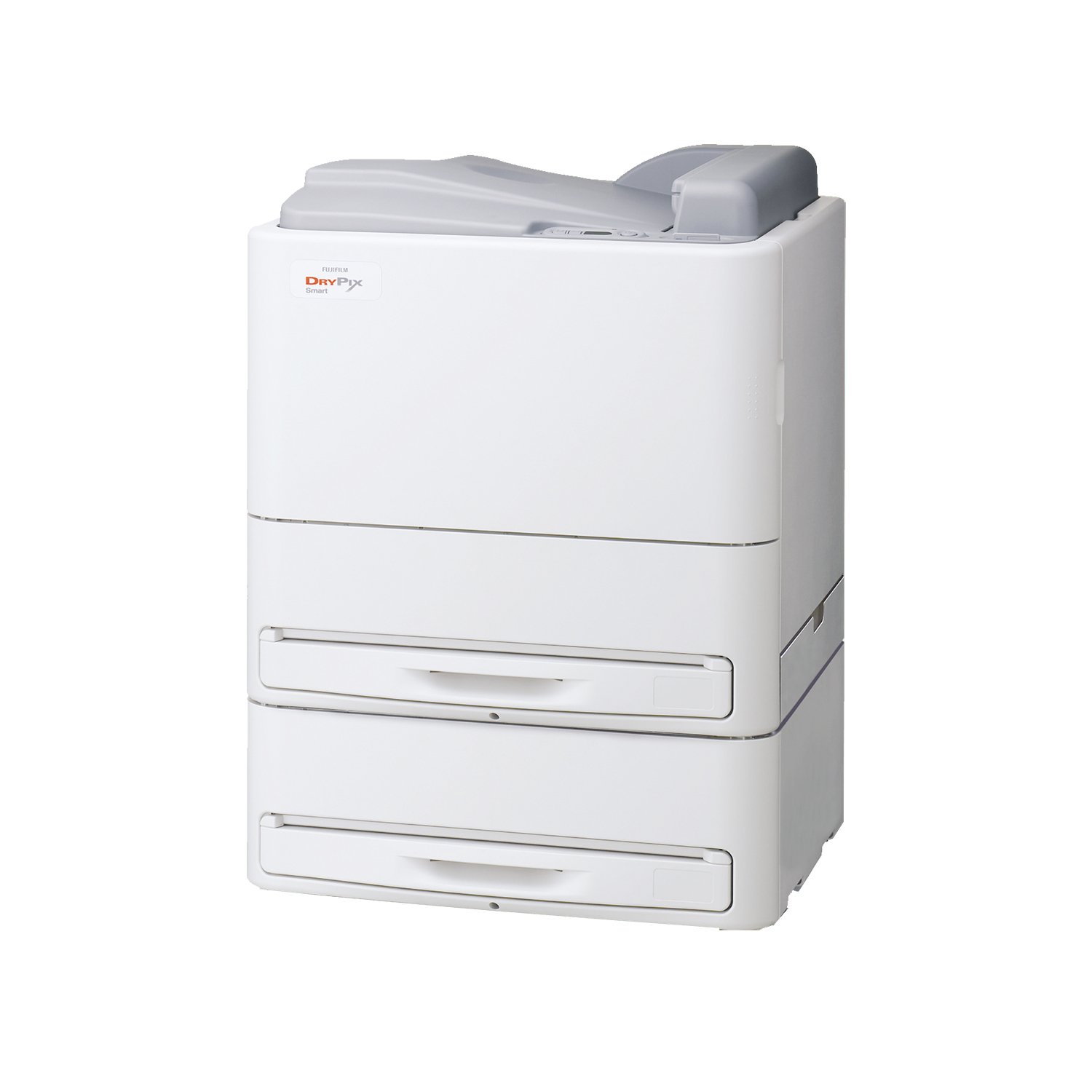

FUJI FILM PRINTER (Dry Laser Film Printer DRYPIX 6000)
The FUJI FILM PRINTER DRYPIX 6000 is a compact, highly efficient medical device. It uses advanced technology and supports medical image printing reliably.
Compact and Highly Efficient with Excellent Throughput
The DRYPIX 6000 boasts a throughput of up to 80 sheets per hour (14″×17″ film). This significantly reduces patients’ waiting time. Additionally, it enhances the overall efficiency of examination workflows. The device comes with 2 universal film trays; changing them allows support for 5 different sizes. Thus, it can handle two sizes at once and meet diverse needs flexibly.
Flexible Compatibility with Various Films, Excellent Imaging Quality
The DRYPIX 6000 is compatible with FUJIFILM medical dry imaging films, including DI-HL (blue base). These films have neutral tones and produce clear images, with quality rivaling traditional wet-processed films. More importantly, it uses the ECO-DRY system, which is both eco-friendly and safe. It employs aqueous solvents with no unpleasant odors and avoids harmful organic solvents, making it better for environmental protection.
High-Quality Imaging for More Accurate Diagnosis
The DRYPIX 6000 offers 508 dpi resolution and a maximum density of 4.0 (with DI-ML film). This makes it ideal for mammography and other high-definition image needs.
Image Processing Engine: Delivering High-Quality Images
The FUJI FILM PRINTER DRYPIX 6000 features an advanced image processing engine. Its Advanced Variable Response (A-VR) Spline Interpolation stands out as it automatically identifies image data and alphanumeric characters. Even when images are noisy and need smooth interpolation, characters stay clear and sharp, making diagnosis easier, faster, and more accurate.
（A-VR）Flowchart
Intelligent Quality Control, More Flexible Tone Adaptation
The DRYPIX 6000 has comprehensive quality control functions, including printing a 24-step grayscale pattern and measuring its density. Through Auto Film Density Correction (FDC), it achieves precise adjustments. Besides, the device has multiple built-in mammography QC test patterns. Another highlight is Smooth Curve Arranging (SAR) technology, which provides suitable tones for CT, MRI, and other modalities. It can adjust tones to individual patients’ needs, and with LUT storing data from various manufacturers’ modalities, it ensures precise tone matching.
| Parameter | Details |
|---|---|
| Standard Components | Fuji MEDICAL Dry Laser Imager DRYPIX Smart (Model: DRYPIX 6000) |
| Recording Method | Laser exposure thermal development system |
| Applicable Film | Fuji Medical Dry Imaging Film DI-HL (blue base) 35x43cm(14″x17″)、35x35cm(14″x14″)、26x36cm(10″x14″)、 25x30cm(10″x12″)、20x25cm(8″x10″) |
| Film Loading | Daylight film loading |
| Film Tray | 2 trays (5 sizes of film available by changing film trays) |
| Processing Capacity | Approx. 80 sheets/hour (35x43cm/14″x17″) |
| Pixel Size | 50μm (508 dpi) / 100μm (254 dpi) |
| Recording Gradation | 14 bits |
| Image Memory | 1GB |
| Density Adjustment | Automatic |
| Input Channels | DICOM network input x 1 channel only |
| Dimensions (W x D x H) | 610 x 630 x 893 mm (24″x25″x35″) |
| Weight | 104 kg (229.3 lbs.) |
| Power Supply Conditions | Input voltage AC100-240V / Single phase, Frequency 50-60Hz |
| Environmental Conditions (Operating) | Temperature: 15-30°C Humidity: 40-70% RH (at 15°C) to 15-70% RH (at 30°C) (No dew condensation) |
Summary of Key Advantages
- 2 film trays, flexible for various sizes
- High throughput of 80 sheets/hour, leading in efficiency
- 508 dpi high resolution, suitable for mammography needs
