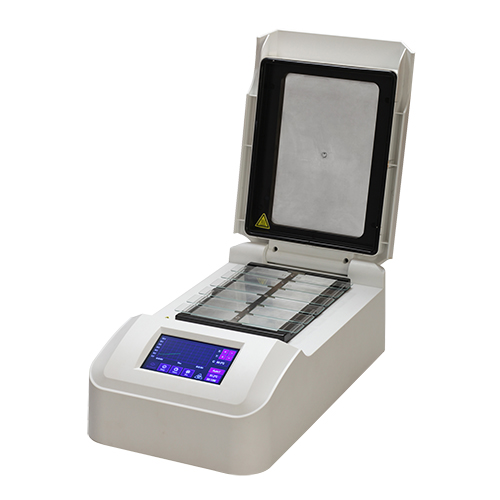

FISH Hybridization System – TDH-500

Programmable Temperature and Humidifying Controlled Slide FISH or ISH Hybridization System

1. TDH-500 Hybridization System provides an easy, safe, system for in-situ hybridization procedures. The programmable, open system automates the denaturation and hybridization steps in slide-based FISH procedures.

2. TDH-500 is easy to use and reduces hands-on time by more than 50% while ensuring overall precision and accuracy in all slide-based assays.

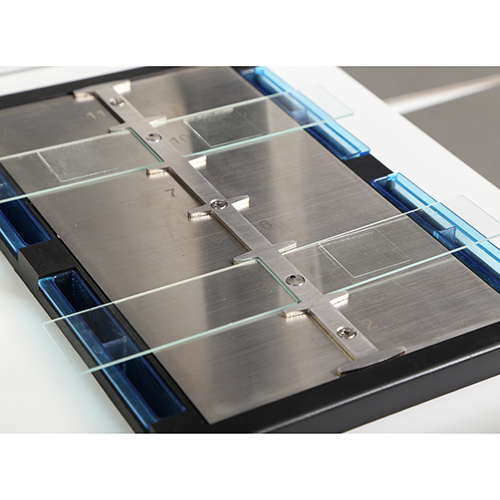

Programmable system and humidifying that automates the steps in a slide-based FISH procedure, and provides walk-away convenience for clinical and research personnel. Up to 12 slides can be easily be added or removed with one hand. Two-side heating of slides that allows achieving exact correspondence of the set and actual temperature and maintaining uniform temperature across all slide positions.

To built upon the innovative design, TDH-500 is ideally suited for the needs of cytogenetic laboratories to provide a good instrument.

Touch screen display, easy programmable setting
Perfect humidity control system
Possibility to expert cycles data


1. Touch screen allows for easy to read, program and use
2. it can run In-situ PCR experiments
3. Possibility to export cycles data via USB memory
4. Four operation modes: denaturation / hybridization, hybridization fixed\ temperature, custom, In-situ PCR
5. Can be used as a fixed temperature slide warmer
6. Rapid temperature warm-up and accuracy of ±1°C
7. Superior temperature uniformity across all slide positions
8. Perfect humidity control system

Technical Data

Temperature Control Range RT+5°C~99.9°C
Temperature Accuracy ±1°C
Temperature Uniformity ±1°C
Processing Timer 1min~99h59min or 1sec~99min59sec
Temp. Display Accuracy ±0.1°C
Heating Time ( 37°C to 95°C ) ≤3min
Cooling Time(95°C to 45°C) ≤7min
Temperature Control Programmable 30°C ~100°C
Operation mode Denaturation/Hybridization, Hybridization fixed temperature, Custom and In-situ PCR
Capacity 12 Slides
Display Touch Screen
Overall Dimensions (L xD x H)mm 225×420×143mm
Weight 5.8kg


 No  Code  Description
1  AS-05010-00  TDH-500 AC120V, 3A or AC220V,2A 50/60Hz
